Asetek SimSports S Series Invicta Sim Racing Pedals - Brake & Throttle (Split Set)
Product Summary
The Invicta S Series Brake and Throttle pedals are the renowned Invicta Sim Racing Pedals, designed to be used separately. This allows you to adjust the distance between the throttle and brake to suit your exact preferences, providing a highly customizable sim racing setup.
Features
- Adjustable Distance: Customize the distance between the throttle and brake for your preferred setup.
- Hydraulic Brake System: T.H.O.R.P.™ (Twin Hydraulic Opposing Rapid Pistons) brake cylinder offers an authentic race car feel.
- Durability: Engineered for longevity with a design that prevents degradation over time.
- User-Friendly Design: Adjustable elements are color-coded for intuitive and mostly tool-less use.
Technical Specifications
General Tech
- Design: Minimalistic industrial Danish design, made in Denmark
- Material: All-black anodized aluminum with CNC machined contrast cuts
- Adjustability: Adjustable pedal stops, travel settings, and pedal plates
- RGB LED: Integrated heel rest with adjustable, dimmable RGB LED
- Calibration: Settings saved in EPROM for consistent performance across games
- Connection: Single USB connection for 2 or 3 pedal utilization
- Activations: Designed and tested for over 1,000,000 activations

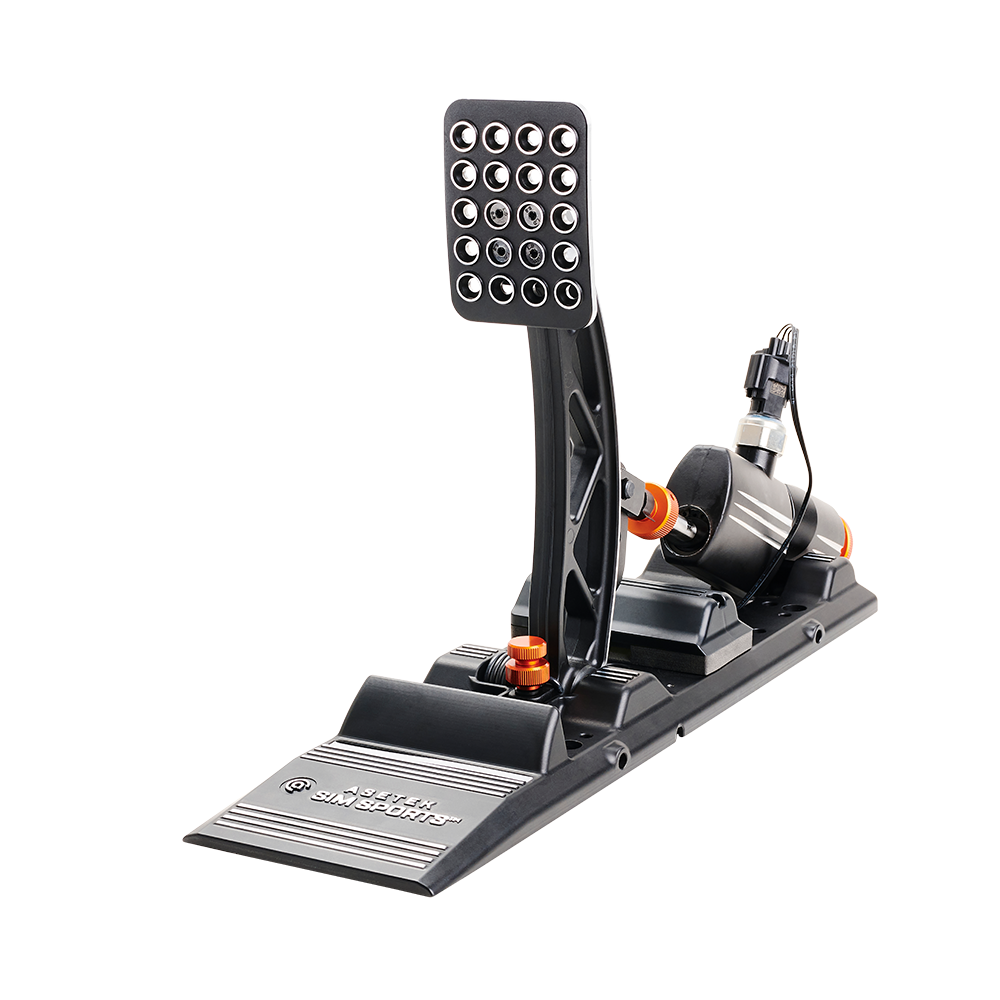

Brake System
- Cylinder: T.H.O.R.P.™ brake cylinder for realistic feel
- Material: Die-cast aluminum with long durability ball bearings and bronze bushing
- Pressure Sensor: Automotive-grade, measures up to 180 kg force
- Adjustability: Three interchangeable elastomers for hardness adjustment

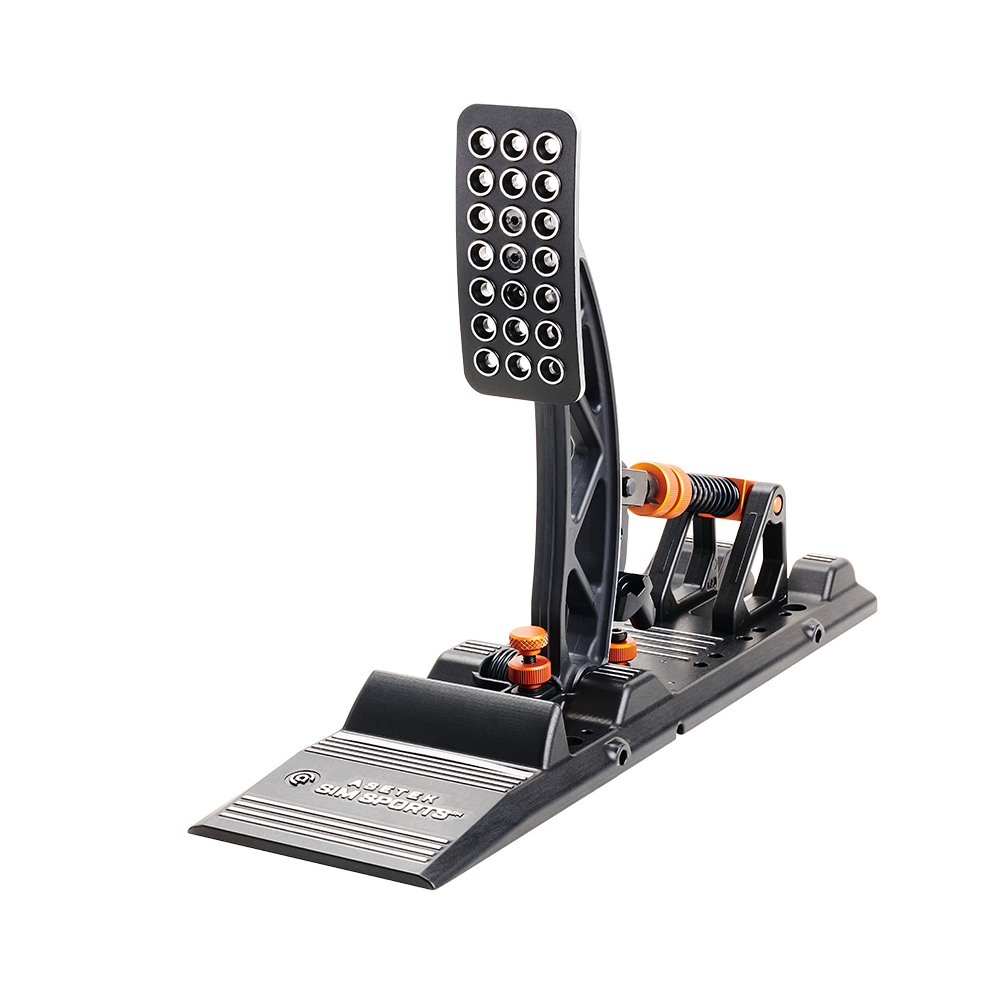

Throttle System
- Material: Die-cast aluminum with long durability ball bearings and bronze bushing
- Sensor: 16-bit magnetic wireless hall TPS with no mechanical wear
- Customization: Custom throttle curves in RaceHub™ software
- Adjustability: Adjustable pedal hardness, travel, and stop
Dimensions
- Size: 457 mm x 212 mm x 256 mm
- Weight: 3 kg
Compatibility
- Chassis: Compatible with all ASR-Brand SimRacing Chassis with Steel Pedal Plate
- Platforms: Windows 10, 11
- Games: Assetto Corsa, Assetto Corsa Competizione, DiRT Rally, DiRT Rally 2.0, F1 Series, iRacing, Project Cars 2, rFactor 2, and more
Downloads
- RaceHub by Asetek SimSports: RaceHub
Boosted Media Preview
“Overall we love these pedals. While they certainly aren’t a one-size-fits-all product, they achieve what they set out to do exceptionally well and at what we believe to be a very reasonable price point.
Input for both the clutch and throttle was smooth on the software side with no signal bounce or flickering whatsoever. The throttle, brake and clutch all employ tool-less adjustment for angle and feel, which makes on-the-fly tweaks easy compared with other pedal sets we have tested...”
– Will Ford, Boosted Media, preview of the Invicta Pedals
Shipping and Lead Time
- FREE SHIPPING to Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut)
- IMPORT DUTIES COVERED for U.S.-based customers
- Ships from Montreal, Canada
- Typical lead time: 5 to 7 business days
- Transit time: 2 to 4 business days
- Note: Large items may not arrive on the same day due to sorting differences
Warranty
- 24-month warranty for defects or lack of conformity
- Notice of defect must be given within a reasonable time
- Options include repair, price reduction, or refund depending on the situation
For more support, visit: Asetek SimSports Support
