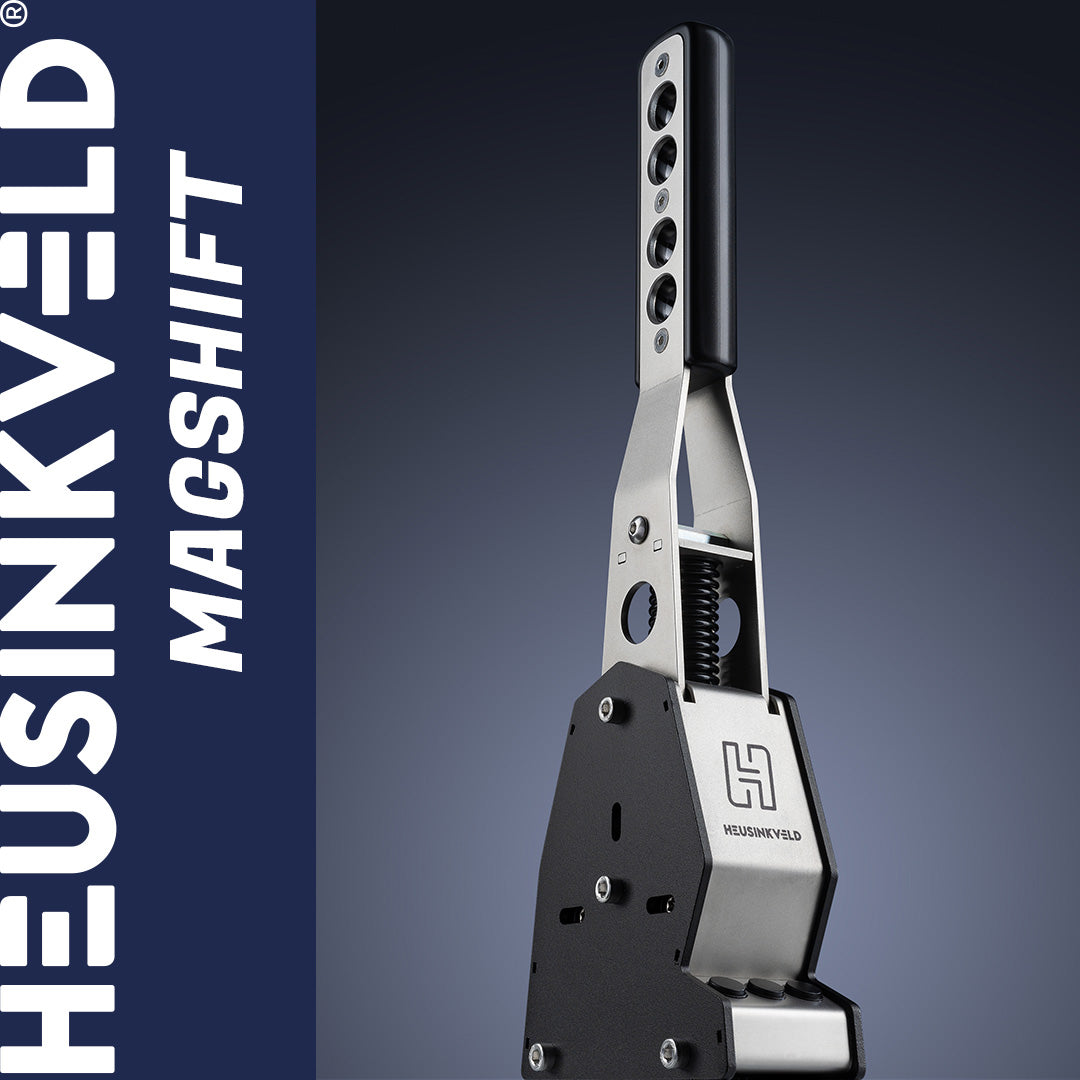

Heusinkveld MagShift Sequential Shifter
Description
The Heusinkveld MagShift is the most versatile sequential shifter on the market, featuring a patented magnetic shift system with individually adjustable upshift, downshift, and overall force. It offers high forces from a compact design and reliable shift detection with opto-electronic sensors. The shifter also includes a mini button box with 3 extra buttons and SmartControl software for up to 10 fully customizable outputs.
Feel the gears click into place with the innovative magnetic shift system. MagShift is perfect for rally cars, GT’s, touring cars, and classic racing. Upgrade your simulator with the most versatile shifter available, packed with extra features.

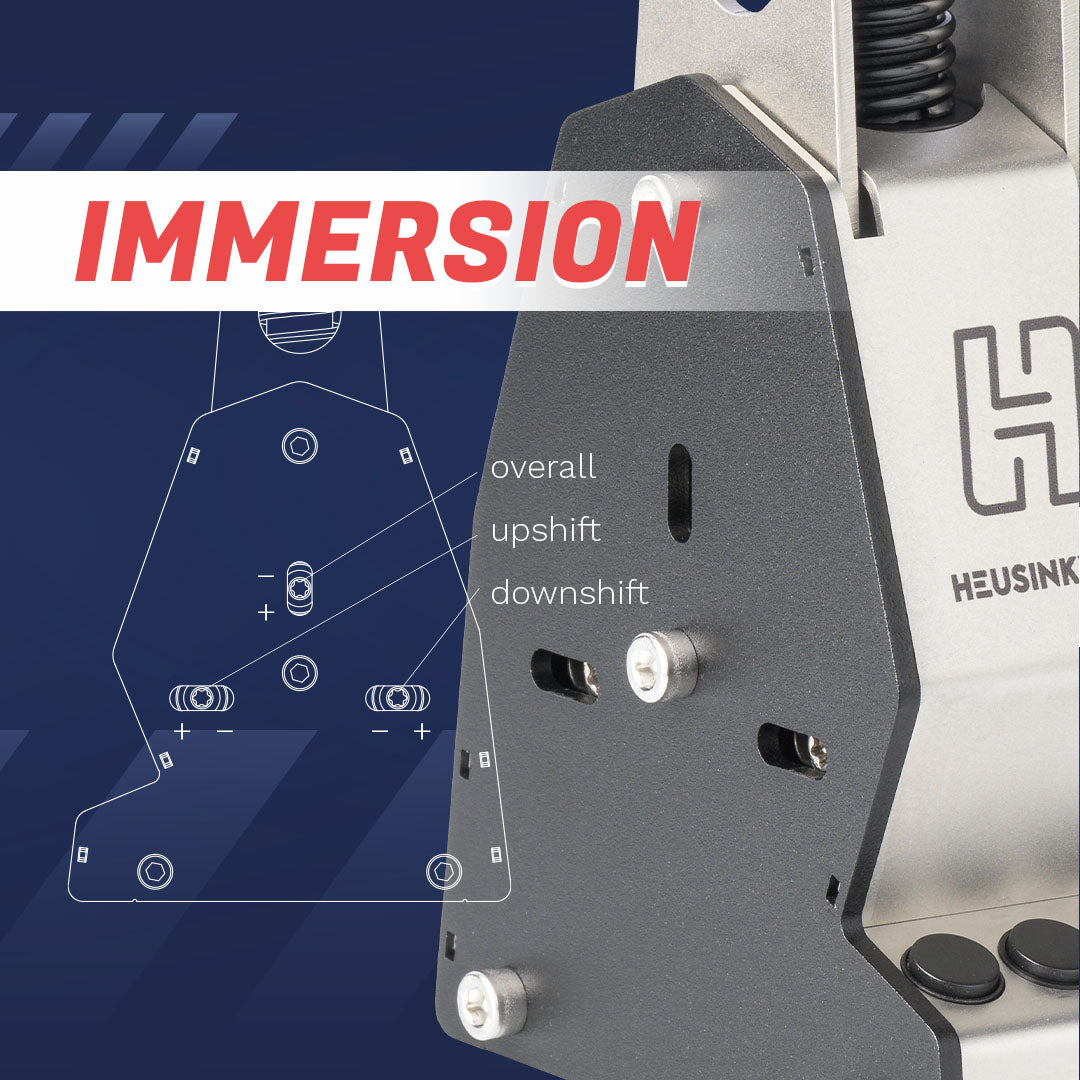

Adjustability
The magnetic shift system is 3-way adjustable. The overall force, upshift force, and downshift force can all be set individually. This allows you to set a firm upshift and soft downshift if you wish. At the firmest setting, you’ll be able to simulate the forces experienced in real race cars.
Sensors & Electronics
Opto-electronic sensors are used to detect shifts, ensuring no wear on electronic components for reliable operation for years. The system is plug-and-play, connecting via USB to immediately assign functions in your favorite simulator software.

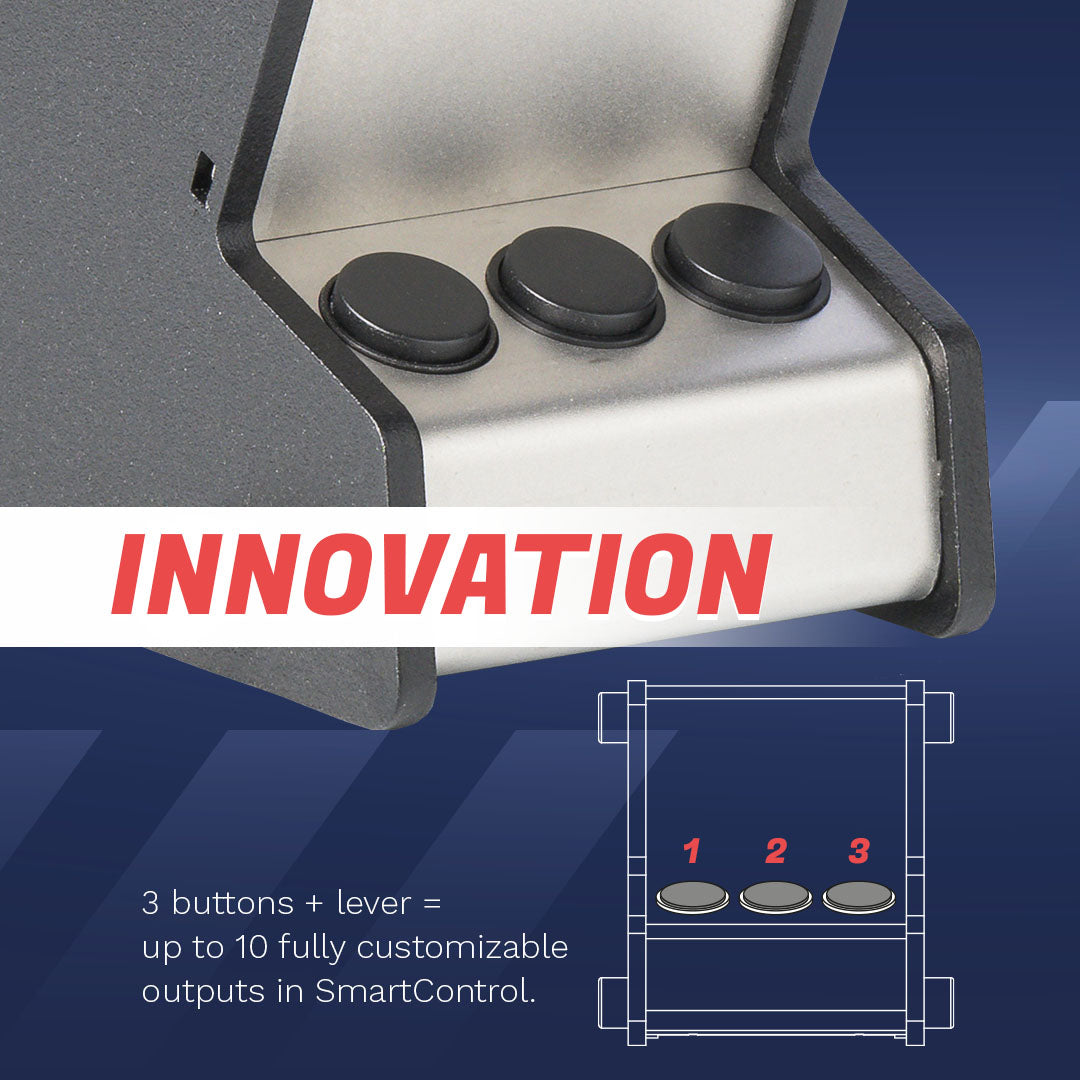

Mini Button Box
Control with 3 extra buttons in the base of the MagShift. Buttons can be assigned to any available function in your favorite simulator software. Extra functions can be unlocked with Heusinkveld SmartControl software, allowing up to 10 fully customizable outputs.
SmartControl Software
With Heusinkveld SmartControl, expand the outputs of the lever and the 3 extra buttons to a total of 10 fully customizable outputs. Configure and customize the outputs using the easy-to-use editor. Each input can have a primary and secondary output, triggered simultaneously, delayed, or independently. Store different settings into profiles and change them with a few mouse clicks.
Mounting

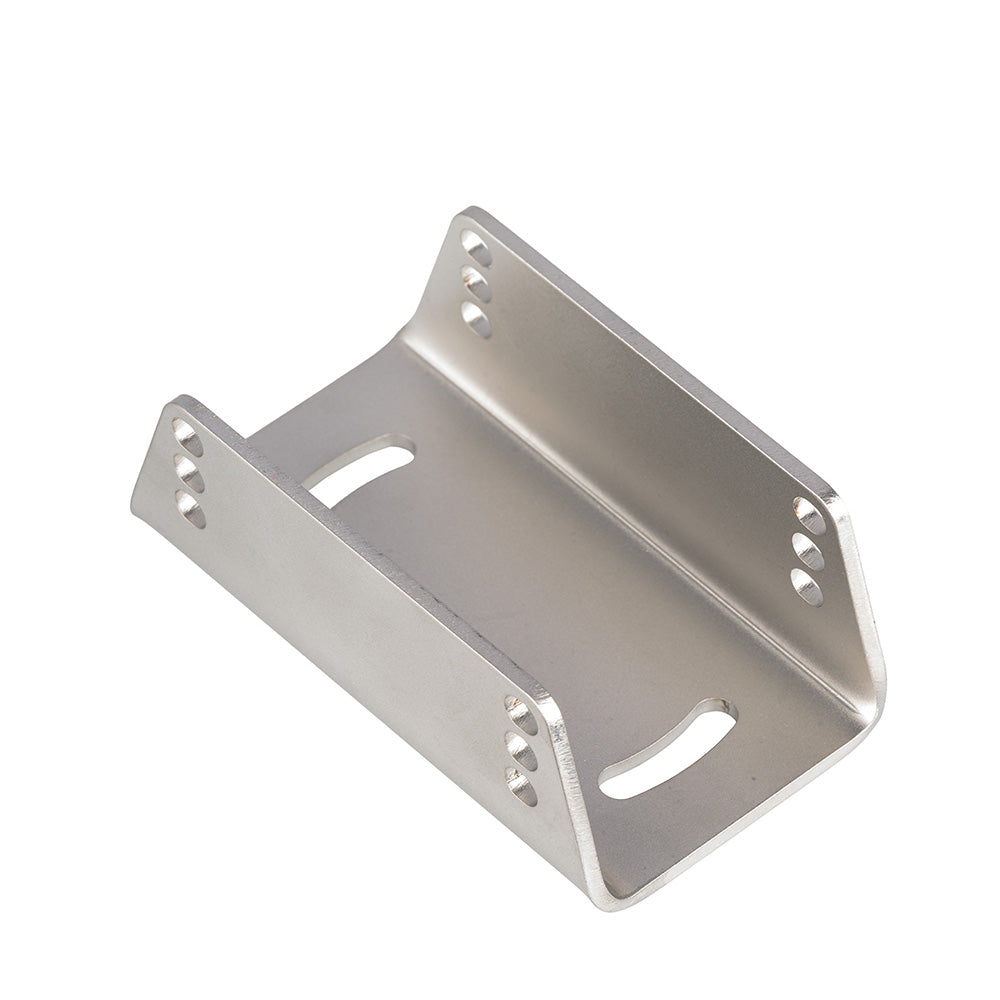

Every MagShift comes with a U-shaped mounting bracket for easy installation. The U-bracket mounts to your simulator with just 2 bolts, ensuring a narrow profile. The MagShift attaches to the bracket, requiring only a single profile slot for mounting.

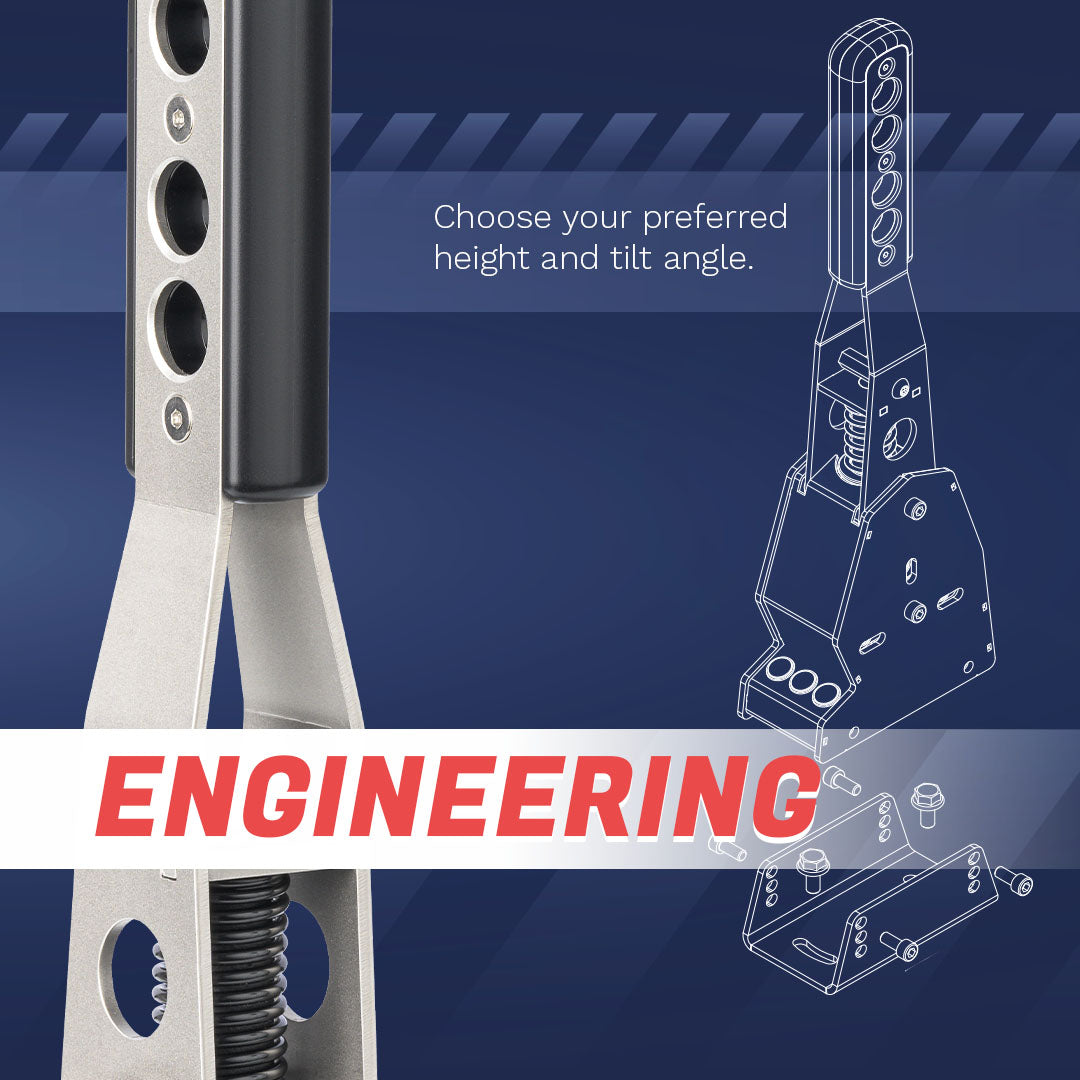

Mounting Adjustments & Dimensions
The mounting bracket allows several adjustments to fine-tune the position:
- Yaw Adjustment: Rotate the U-bracket relative to the mounting platform.
- Height Adjustment: Choose any of the 3 horizontal rows of mounting holes in the U-bracket.
- Tilt Adjustment: Choose any diagonal combination of the mounting holes in the U-bracket.
Height of the MagShift:
- 36.2 cm (14.25 in) in the lowest position
- 37.7 cm (14.84 in) in the highest position
Mounting materials are supplied to attach the MagShift to most common simulator platforms, including bolts and nuts for easy installation onto aluminum profiles.
Shipping and Lead Time
- Free Shipping: Available to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
- Import Duties Covered: For U.S.-based customers.
- Ships from Montreal, Canada: Typical lead time before shipping out orders is 5 to 7 business days, depending on the shipping queue.
- Transit Time: Typically takes between 2 and 4 business days after shipping.
Important Note
Large items, such as our SimRacing Chassis, Monitor Stands, and Racing Seats, might not arrive on the same day as other parts of your order due to their weight and size, affecting sorting at our shipping partner's logistics hub.
Warranty
Heusinkveld provides a 24-month warranty starting from the date of delivery. Repairs and/or replacements do not extend the warranty period. Defects will be remedied free of charge within a reasonable period by repairing or replacing the products/parts in question.
Warranty Coverage Limitations
- Incorrect setup and/or installation
- Non-compliance with (safety) regulations stated in the manual
- Inappropriate use or operation
- External influences, such as transport damage and impact damage
- Repairs and modifications not carried out by Heusinkveld
- Use of non-original parts
Heusinkveld does not warrant that the products are suitable for the purpose for which the Buyer wishes to use them. Under no circumstances are the products suitable for use other than in a simulator. For warranty information or claims, please contact info@heusinkveld.com.
