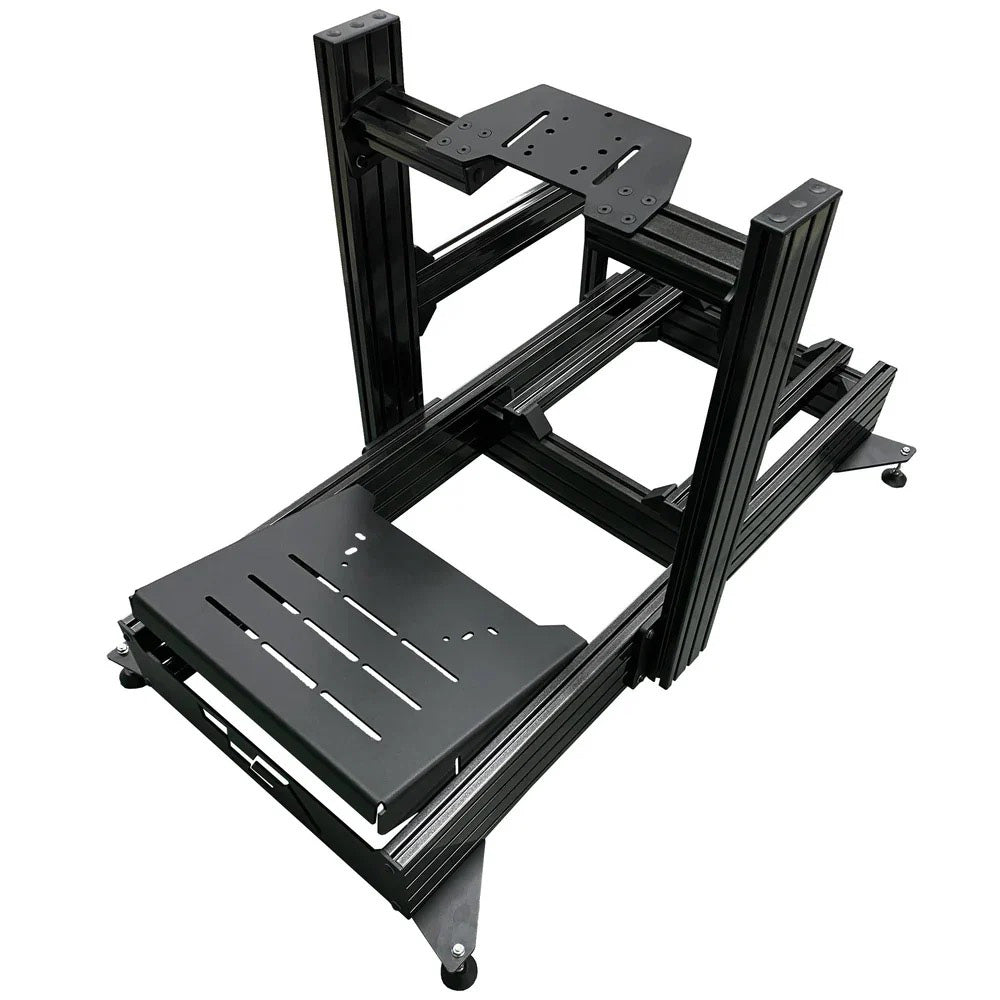

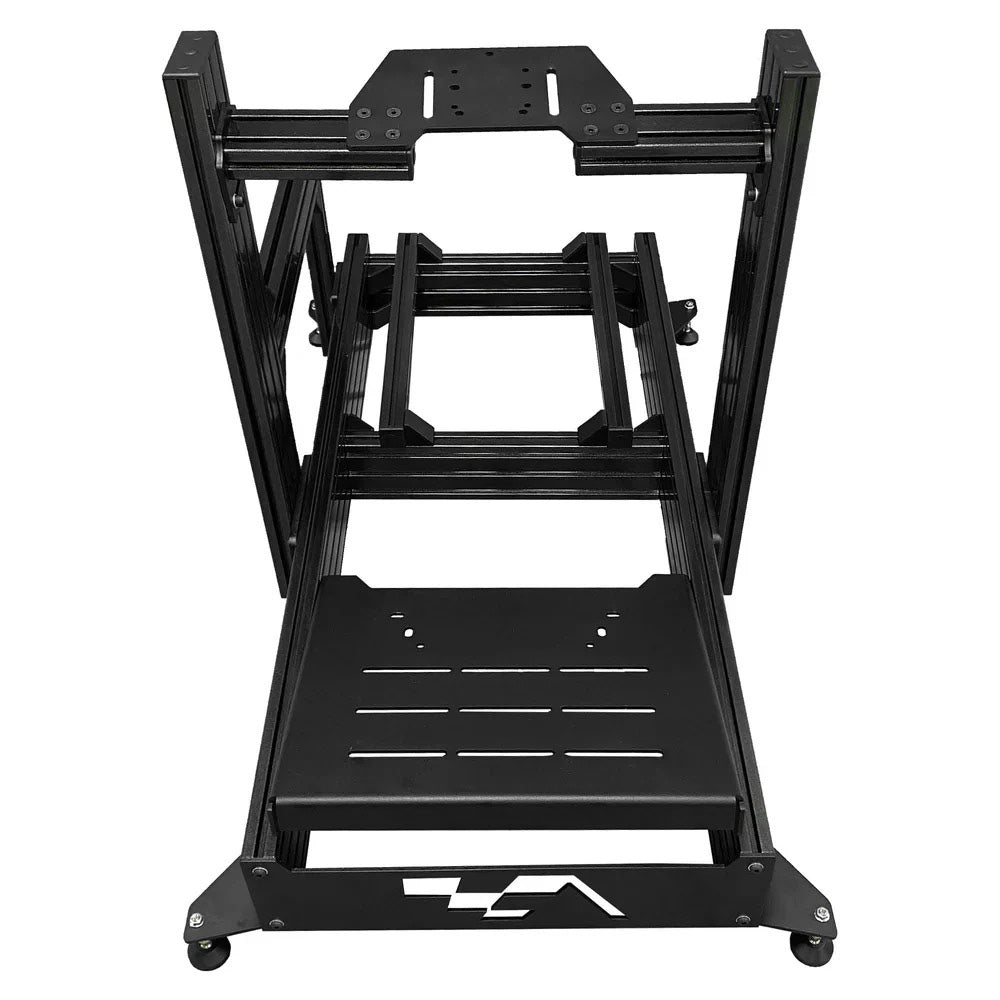

Available in Carbon Grey and Infinite Black, our powder coat formula provides extra durability, enhanced scratch protection, and a pristine look. Made from top-grade aluminum sourced in the USA and assembled in Canada, the ASR 6 ensures lifetime durability and the ultimate sim racing experience.

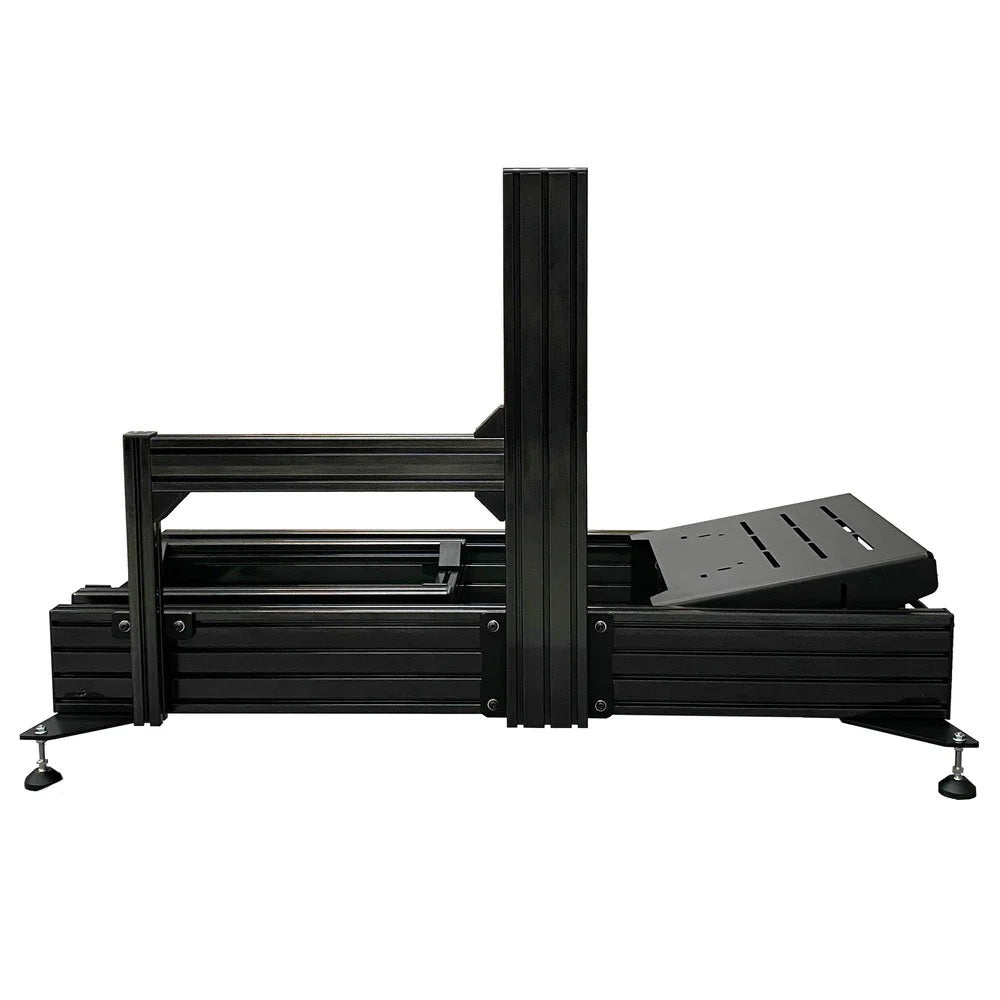

The extruded aluminum design allows for multiple adjustments, ensuring comfort during both short and long sim racing sessions. The 6" base and seat mounting configuration enable vertical seat adjustments. The fully adjustable pedal plate can be modified in height, angle, and position. The highly adjustable wheel deck helps you create your perfect racing position. Suitable for most builds and heights up to 6'6" (1.98m).

All steel parts, including wheel mounting plates and pedal plates, come in a textured matte black finish.

Wheel Deck Options:

1. Standard Wheel Deck: For entry-level and mid-range products from Thrustmaster, Fanatec, and Logitech.
2. Podium DD Side Mount: For Fanatec Podium Series.

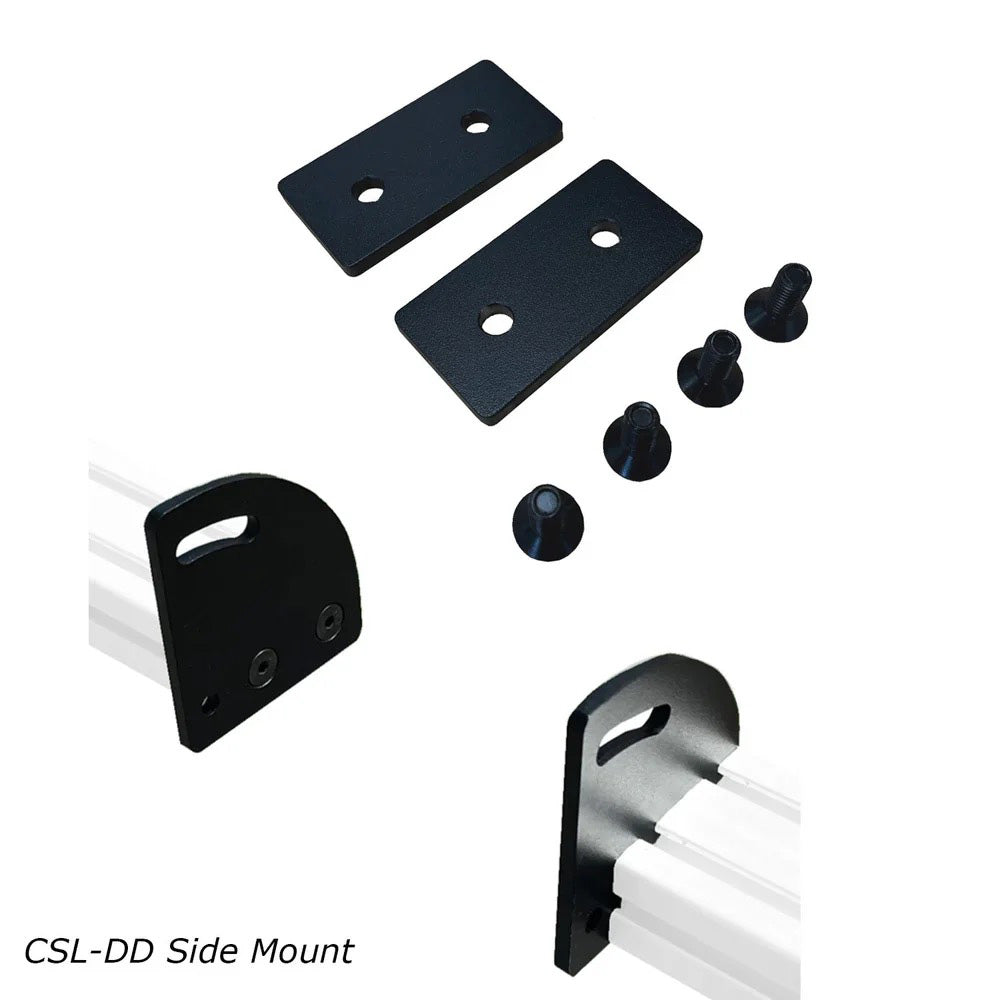

3. CSL DD Pro Side Mount: For Fanatec CSL DD & GT DD Pro.

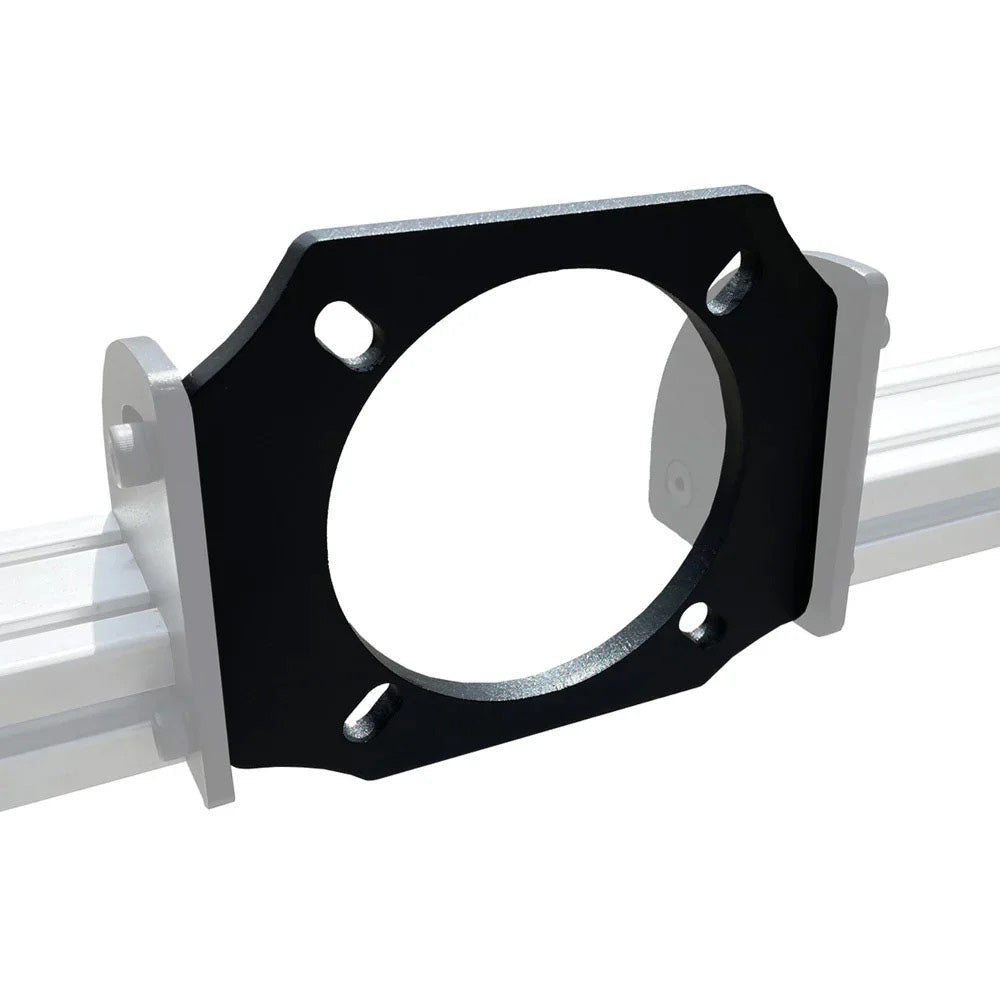

4. Front Mount: For MiGE motor-type wheelbases, including Simucube products, Simagic Alpha/Alpha Mini, VRS products, and other front-mounting wheelbases.

Pedal Tray Options:

1. Steel Pedal Plate
2. Aluminum Pedal Deck & Heel Rest

Specifications:

• Base Composition: 6" x 1.5" aluminum profile
• Steering Column Composition: 4.5" x 1.5" aluminum profile
• Base Length: 50"
• Base Width: 22"
• Chassis Height: 32" (from adjustable rubber feet to the tip of the steering column)
• Assembled Weight: 132 lbs

What's Included:

Box 1 (Aluminum): 50" x 6" x 3"

• 1 x 50" x 6" x 1.5" aluminum profile
• 1 x 30" x 4.5" x 1.5" aluminum profile
• 1 x 19" x 4.5" x 1.5" aluminum profile
• Front plate with Advanced SimRacing crest

Box 2 (Aluminum): 50" x 6" x 3"

• 1 x 50" x 6" x 1.5" aluminum profile
• 1 x 30" x 4.5" x 1.5" aluminum profile
• 1 x 19" x 4.5" x 1.5" aluminum profile

Box 3 (Aluminum): 22" x 5" x 3"

• 2 x 22" x 1.5" x 1.5" aluminum profiles
• 1 x 16" x 1.5" x 1.5" aluminum profile
• 1 x 19" x 3" x 1.5" aluminum profile

Box 4 (Hardware): 10" x 8" x 4"

• 16 x Corner Gussets and Plastic Caps
• 50 x M8 Screws (16mm)
• 10 x M8 Screws (20mm)
• 4 x M8 Screws (12mm)
• 10 x M8 Flathead Screws (20mm)
• 4 x 5/16" Screws for filted ends (16mm)
• 70 x M8 T-Nuts
• 2 x Side mounting plates (6" x 7")
• 1 x Side mounting plate (4.5" x 1.5")
• Endcaps: 2 x 6" Endcaps, 2 x 4.5" Endcaps, 5 x 1.5" Endcaps, 1 x 3" Endcap
• 22 x Pushpins
• 4 x M10 Rubber feet
• 4 x Metal plates for rubber feet

Box 5 (Wheel Deck Selection): 13" x 10" x 3"

• Depending on your selection: Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x 7.5" x 3" x 1.5" aluminum profiles

Box 6 (Pedal Support) Depending on your selection

• Steel Pedal Plate: 19" x 20" x 7", 1 x 3/16" Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest: 20" x 9" x 6", 2 x 18.5" x 3" x 1.5" aluminum profiles, 2 x 1/4" Side Steel Plates, 1 x 1/8" Steel Heel Rest, 12 x M8 Socket Cap Screws (16mm), 4 x M8 Screws (12mm), 8 x M8 T-Nuts

Compatibility:

Standard Wheel Deck:

• Logitech products, Thrustmaster products, Fanatec entry-level and mid-range products (including CSL DD and Podium DD products), Simagic M10, AccuForce Pro V2 Steering System, Moza R9, R12, R16, R21, MOZA R5 (only back two bolts)

Fanatec (Podium DD & CSL DD Side Mount):

• Fanatec Podium DD1 & DD2, CSL DD, GT DD Pro, ClubSport DD and DD+

Asetek (Front Mount):

• All Asetek Wheel bases

Simucube & MiGE Motor (Front Mount):

• Simucube 2 Sport, Pro & Ultimate, VRS Direct Force Pro, Simagic Alpha/Alpha Mini, other MiGE motor-type wheelbases

Steel Pedal Plate:

• Asetek SimSports Invicta & Forte Sim Racing Pedals, Heusinkveld, Sim Pedals Sprint, Ultimate, Ultimate+, Thrustmaster products, Fanatec (except CSR Pedals), Logitech products, Simtrecs ProPedal GT, Simagic P1000 & P2000, and many more (please inquire for specific pedal sets)

Aluminum Pedal Deck & Heel Rest:

• Heusinkveld, Sim Pedals Sprint, Ultimate, Ultimate+, MECA Cup1, MECA EVO1, Simagic P2000, Simtrecs ProPedal GT, Sim Coaches P1-2/3 Pro Hydraulic Pedals, Simforge Engineering Mark-1, RaceWerks S1 PRO, Simworks PRO GT V3.1 LC Pedal Set, Venym Atrax Black Formula, Venym Black Widow, Cube Controls SP01, HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required), and many more (please inquire directly with us for specific pedal sets)
