ASR-K Description

Meet the ASR-K, designed for kids aged 4 to 12 and karting enthusiasts. The ASR-K offers an affordable chassis option for parents looking to introduce their kids to karting or for training at home. It is robust enough to support any belt-driven or direct-drive wheelbase. Made from top-grade aluminum sourced in the USA, it offers durability without the heavier profiles of higher-tier models.

The ASR-K is available with or without the seat. The included karting seat from Freeline is XS size, predrilled to fit the ASR-K, and comes with low-profile Button Head M8 bolts for comfort. Produced and packaged in Canada, the ASR-K features a highly adjustable wheel deck and pedal plate, allowing for a customized and optimal racing position as your child grows. Suitable for kids up to 5 ft and around 110 lbs.

All steel parts, including wheel mounting plates and pedal plates, come in a textured matte black finish.

Wheel Deck Options:

1. Advanced Standard Wheel Deck: Compatible with bottom-mounting wheelbases (Logitech, Thrustmaster, etc.).
2. Podium DD Side Mount: For Fanatec Podium DD1/DD2 Series.

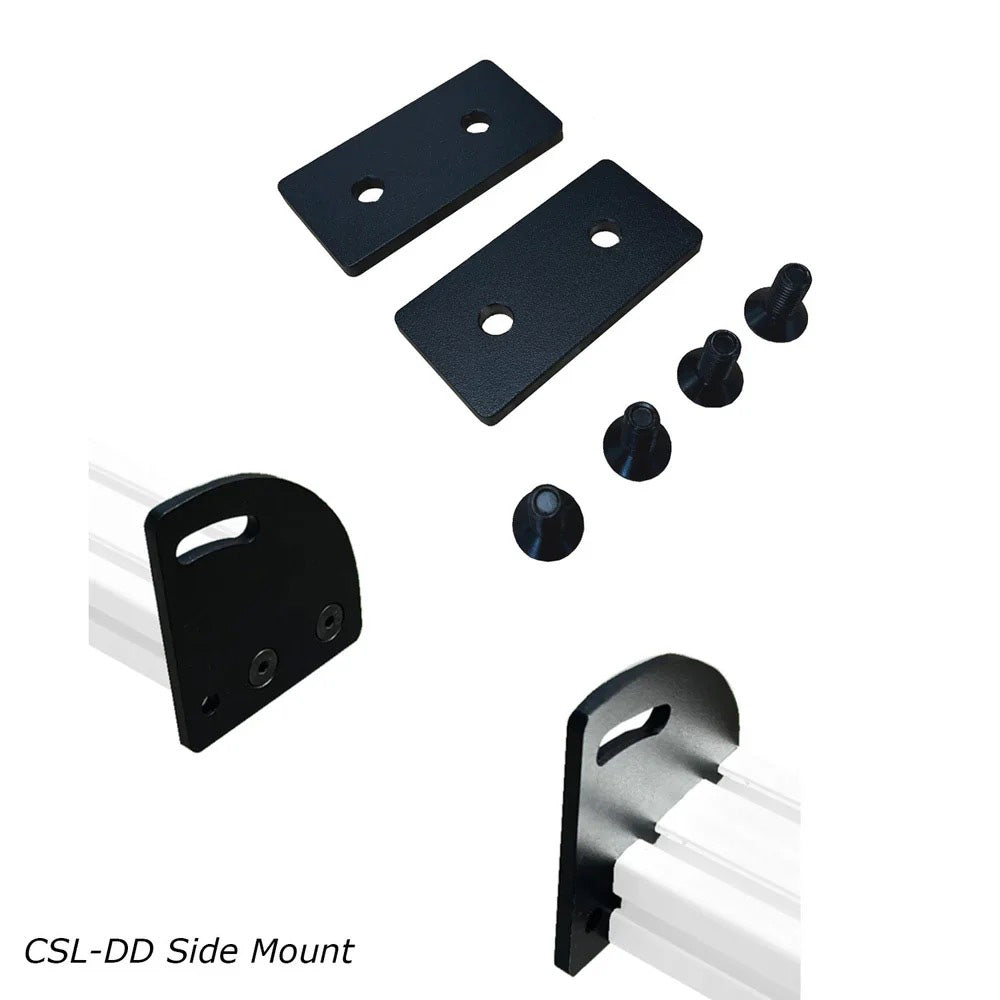

3. CSL DD Pro Side Mount: For Fanatec CSL DD & GT DD Pro.
4. Front Mount: For MiGE motor-type wheelbases (Simucube, Simagic Alpha/Alpha Mini, VRS products).

Specifications:

• Base Composition: 3" x 1.5" aluminum profile
• Steering Column Composition: 3" x 1.5" aluminum profile
• Base Length: 40"
• Base Width: 22"
• Chassis Height: 20" (from rubber feet to the tip of the steering column)

What's Included:

Box 1 (Aluminum): 50" x 5" x 5"

• 2 x 40" x 3" x 1.5" aluminum profiles
• 2 x 16" x 3" x 1.5" aluminum profiles
• 1 x 19" x 1.5" x 1.5" aluminum profile

Box 2 (Aluminum): 22" x 5" x 3"

• 1 x 22" x 1.5" x 1.5" aluminum profile

Box 3 (Hardware): 10" x 8" x 4"

• 8 x Corner Gussets and Plastic Caps
• 28 x M8 Socket Cap Screws (16mm)
• 1 x M8 Button Head Screw (12mm)
• 2 x M8 Button Head Screws (25mm)
• 31 x M8 T-Nuts
• Endcaps: 2 x 1.5" Endcaps, 6 x 3" Endcaps
• 14 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Nuts

Box 4 (Wheel Deck):

• Depending on your selection: Advanced Standard Wheel Deck, Podium DD Side Mount, Podium DD Side Mount and Front Mount, or CSL DD Side Mount
• 8 x Flathead Socket Cap Screws (16mm)
• 8 x M8 T-Nuts
• 2 x 5⅝" x 3" x 1.5" aluminum profiles

Box 5 (Pedal Tray):

• Steel Pedal Plate: 19" x 16" x 4", 1 x 3/16" Steel Pedal Plate

Box 6 (Karting Seat)

Compatibility:

Advanced Wheel Deck:

• Logitech products, Thrustmaster products, Fanatec entry-level and mid-range products (including CSL DD & GT DD Pro)

Podium DD Side Mount:

• Fanatec Podium Series DD1 and DD2

CSL DD Pro Side Mount:

• Fanatec CSL DD, Fanatec GT DD Pro

Front Mount:

• Simucube 2 Sport, Pro & Ultimate, VRS Direct Force Pro, Simagic Alpha/Alpha Mini, other MiGE motor-type wheelbases

Steel Pedal Plate:

• Asetek SimSports Invicta Sim Racing Pedals, Heusinkveld, Sim Pedals Sprint, Sim Pedals Ultimate, Sim Pedals Ultimate+, Thrustmaster products, Fanatec (except CSR Pedals), Logitech products, Simtrecs ProPedal GT, Asetek SimSports Invicta Sim Racing Pedals, and many more (please inquire for specific pedal sets)
