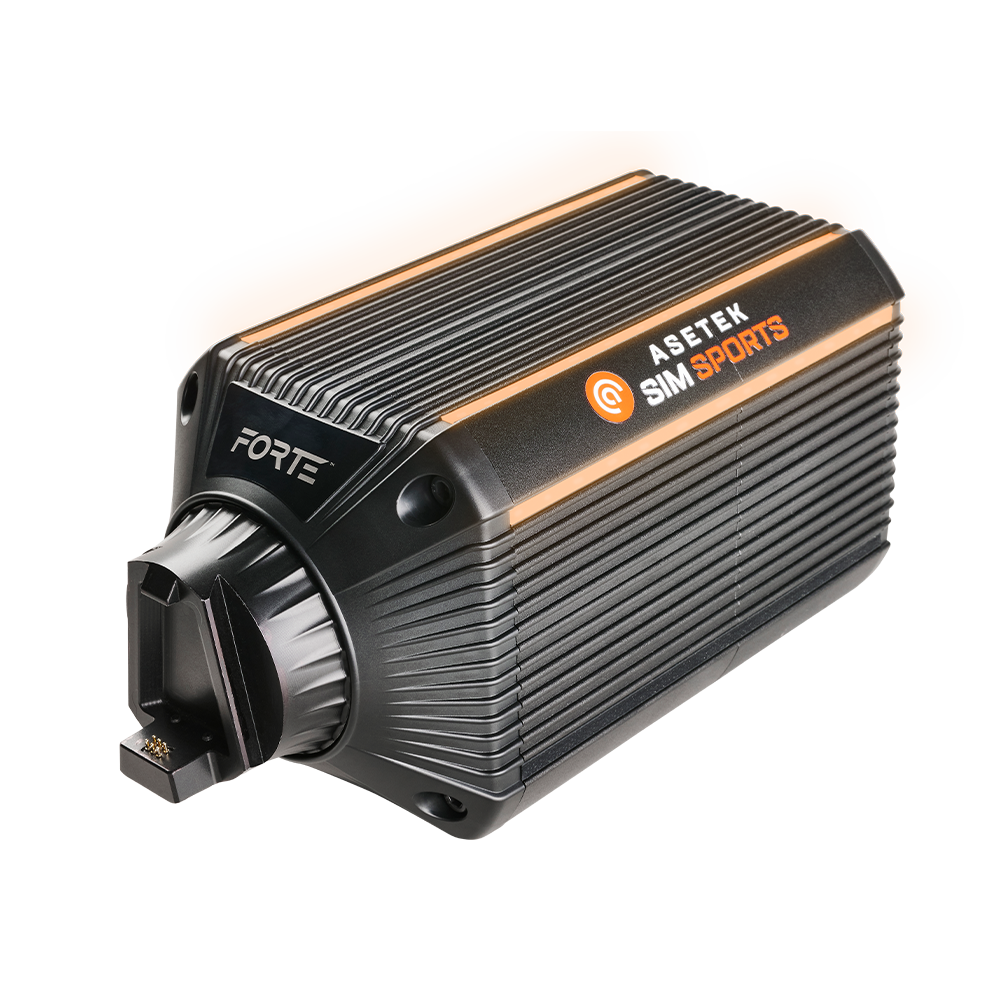

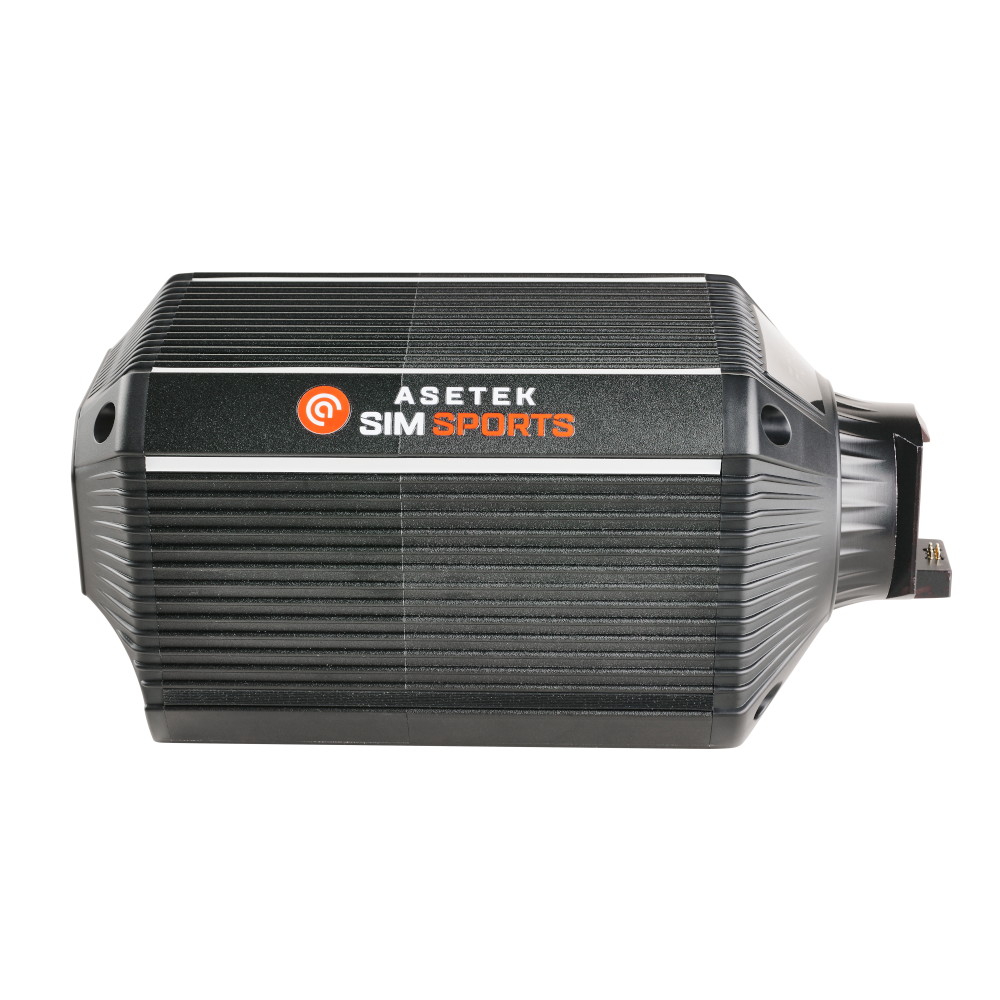

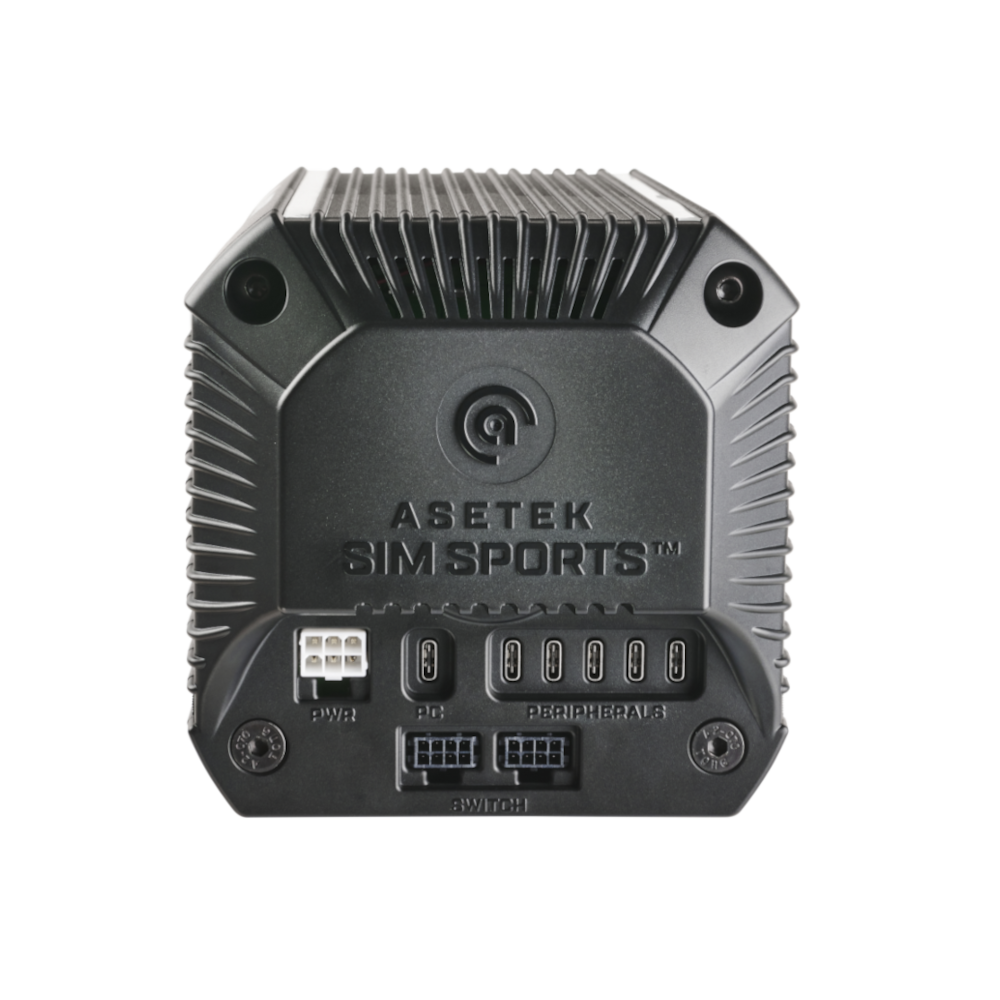

Asetek SimSports Forte Direct Drive Wheelbase 18Nm
Product Summary
The Asetek SimSports Forte Direct Drive Wheelbase 18Nm is designed to deliver the best sim racing experience without breaking the bank. Developed from scratch, this wheelbase features high-end electronics, software, and mechanics. With a peak torque of 18Nm, a 22-bit encoder, and up to 4 million steps per revolution, it provides smooth, responsive, and precise feedback.
Engineered for durability and performance, the wheelbase is made from aluminum and steel. It serves as the central hub for your simulator, allowing you to connect your Asetek SimSports® pedals, wheels, and future peripherals. The compact form factor and various mounting options make it adaptable to any rig.
Features
- Peak Torque: 18Nm
- Encoder Resolution: 22-bit / 0.000085 degrees / 4,000,000 steps
- Direct Drive Force Feedback
- Exquisite Danish industrial design
- Anodized extruded aluminum housing
- Programmable RGB LEDs
- Asetek SimSports® Quick Release
- 400W power supply
- Slipring designed and tested to +200,000,000 activations
Software Features
- Setup and save profile presets
- Adjust steering range, bumpstop hardness, and bumpstop range
- Adjust overall force, basic damping, and basic smoothing
Dimensions
- Height: 133mm
- Width: 132mm
- Length (Including Quick Release): 293mm
- Weight: 8.5kg
Compatibility
- Compatible with ASR Brand SimRacing Chassis
- PC only at this time
- Supports Assetto Corsa, Assetto Corsa Competizione, DiRT Rally, DiRT Rally 2.0, F1 Series, iRacing, Project Cars 2, rFactor 2, and more
Mounting and Customization
- T-nuts pre-installed in bottom grooves for easy sliding
- Various mounting options: table clamp, bottom mount, side mount, and integrated front mounts
- Customizable ARGB LED strips managed by RaceHub™ software
Downloads
- RaceHub by Asetek SimSports: RaceHub Download
Shipping and Lead Time
- FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut)
- IMPORT DUTIES COVERED for U.S.-based customers
- Ships from Montreal, Canada
- Typical lead time before shipping: 5 to 7 business days
- Transit time: 2 to 4 business days
- Large items like SimRacing Chassis, Monitor Stands, and Racing Seats may not arrive on the same day due to sorting differences
Warranty
- 24-month warranty for defects or lack of conformity from the time you receive the goods
- Notice of defect must be given within a reasonable time after it is established
- Depending on the situation, you may get the goods repaired, a price reduction, or a refund
For more support, visit: Asetek SimSports Support
