Asetek SimSports Invicta Direct Drive Wheelbase 27Nm
Product Summary
The Asetek SimSports Invicta Direct Drive Wheelbase 27Nm is designed to deliver top-tier performance without breaking the bank. Developed from scratch with high-end components, this wheelbase features a peak torque of 27Nm, a 22-bit encoder, and up to 4 million steps per revolution, ensuring smooth, responsive, and precise feedback.
Built with aluminum and steel, the wheelbase is durable and compact, fitting any rig and serving as the central hub for your simulator. It includes customizable aRGB LED strips, easy-to-use quick release, and compatibility with various steering wheels from leading vendors. The wheelbase is managed via the RaceHub™ software, allowing for extensive customization of your driving experience.
Features
Tech Specs
- Design: Exquisite, radical, and minimalistic Danish industrial design
- Material: Anodized extruded aluminum housing
- Force Feedback: Direct Drive
- Peak Torque: 27Nm
- Encoder Resolution: 22-bit / 0.000085 degrees / 4,000,000 steps
- RGB LEDs: 6x25 Programmable RGB LEDs, adjustable in RaceHub™
- Quick Release: Asetek SimSports® Quick Release
- Power Supply: 400W
- Slipring: Designed and tested to +200,000,000 rotations
Software Features
- Setup and save profile presets
- Adjust steering range, bumpstop hardness, and bumpstop range
- Adjust overall force, basic damping, and basic smoothing
Dimensions
- Height: 133mm
- Width: 132mm
- Length (Including Quick Release): 327mm
- Weight: 11.3kg
Compatibility
- Compatible with ASR Brand SimRacing Chassis
- PC only at this time
- Future console support planned with potential motherboard upgrade
- Compatible with Asetek SimSports® Forte® Formula Steering Wheel, Asetek SimSports® La Prima™ Formula Steering Wheel, and steering wheels from featured ecosystem partners
- Supported Games: Assetto Corsa, Assetto Corsa Competizione, DiRT Rally, DiRT Rally 2.0, F1 Series, iRacing, Project Cars 2, rFactor 2, and more
Mounting & Customization
- Compact and flexible form factor for any rig
- T-nuts pre-installed for easy adjustment and sliding
- Various mounting options: table clamp, bottom mount, side mount, integrated front mounts

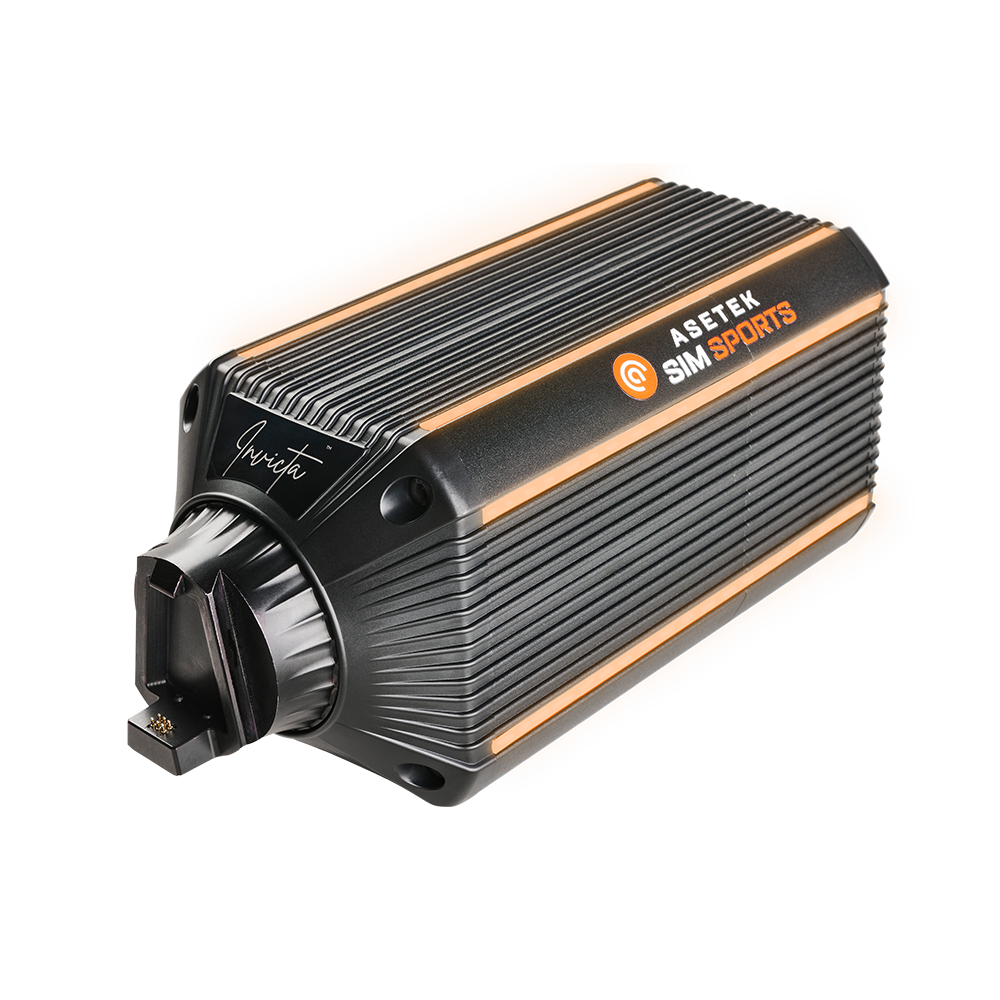

- Customizable ARGB LED strips to match your setup, managed via RaceHub™
Downloads
- RaceHub by Asetek SimSports: RaceHub Download
Shipping and Lead Time
- FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut)
- IMPORT DUTIES COVERED for U.S.-based customers
- Ships from Montreal, Canada
- Typical lead time before shipping: 5 to 7 business days
- Transit time: 2 to 4 business days
- Large items like SimRacing Chassis, Monitor Stands, and Racing Seats may not arrive on the same day due to sorting differences
Warranty
- 24-month warranty for defects or lack of conformity from the time you receive the goods
- Notice of defect must be given within a reasonable time after it is established
- Depending on the situation, you may get the goods repaired, a price reduction, or a refund
For more support, visit: Asetek SimSports Support
